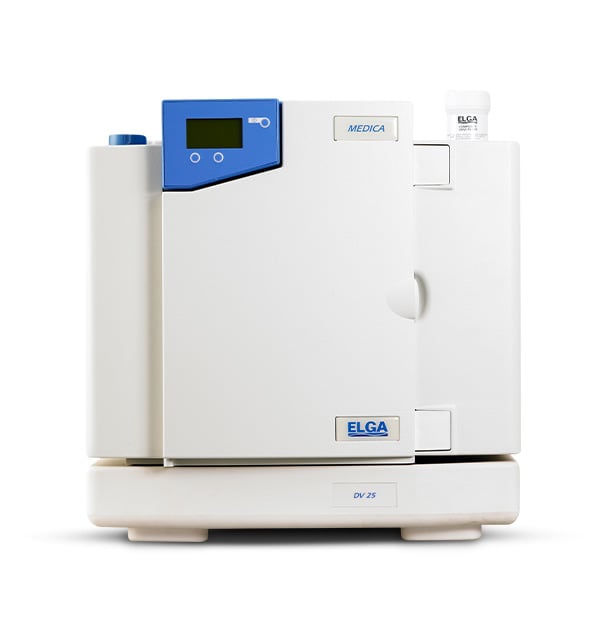

MEDICA EDI 15/30

Reliable and economical supply for analyzers which require higher volumes of water

Designed to supply CLRW grade water to a single analyzer. The MEDICA EDI 15/30 is the ideal system to provide predictable consumables usage, reducing the number of interventions.

The MEDICA EDI 15/30 is a compact, high-performance water purification system that directly feeds Clinical Diagnostic Analyzers with up to 1.5 l/min of CLRW standard grade water. The MEDICA EDI incorporates EDI ‘Pulse Technology’ using Electrodeionization (EDI). Innovative technology, combined with its unique features, makes the MEDICA EDI 15/30 a highly reliable and cost-effective choice.

MEDICA EDI Diagram




  • Features
  • Tech Specs
  • Consumables
  • FAQs
  • Download Brochure
  • Get a Quote

"MEDICA EDI is very sturdy and rugged. It has multiple purification technologies inside to provide you with pure water. Compact size with all modules built in one. The preferred choice for our Diagnostics labs. "

TEJAS METHA
SYNERGY MEDICAL SYSTEMS LLP

Features

  • Space saving design – smallest footprint available on the market for the pure water specification. Optional Docking Vessel water reservoir facilitates bench top or wall mounting as a single unit

  • Guaranteed performance at all times through self-monitoring software, easy system maintenance, and emergency by-pass facility

  • Pure water ready to go – water specification is maintained in the reservoir by regular recirculation through the system’s purification process

Ideally suited for:

• Single or multiple clinical analyzers requiring up to 30 liters/hr
• Single clinical analyzers requiring up to 1.5 liters/min instantaneous demand of CLRW grade water

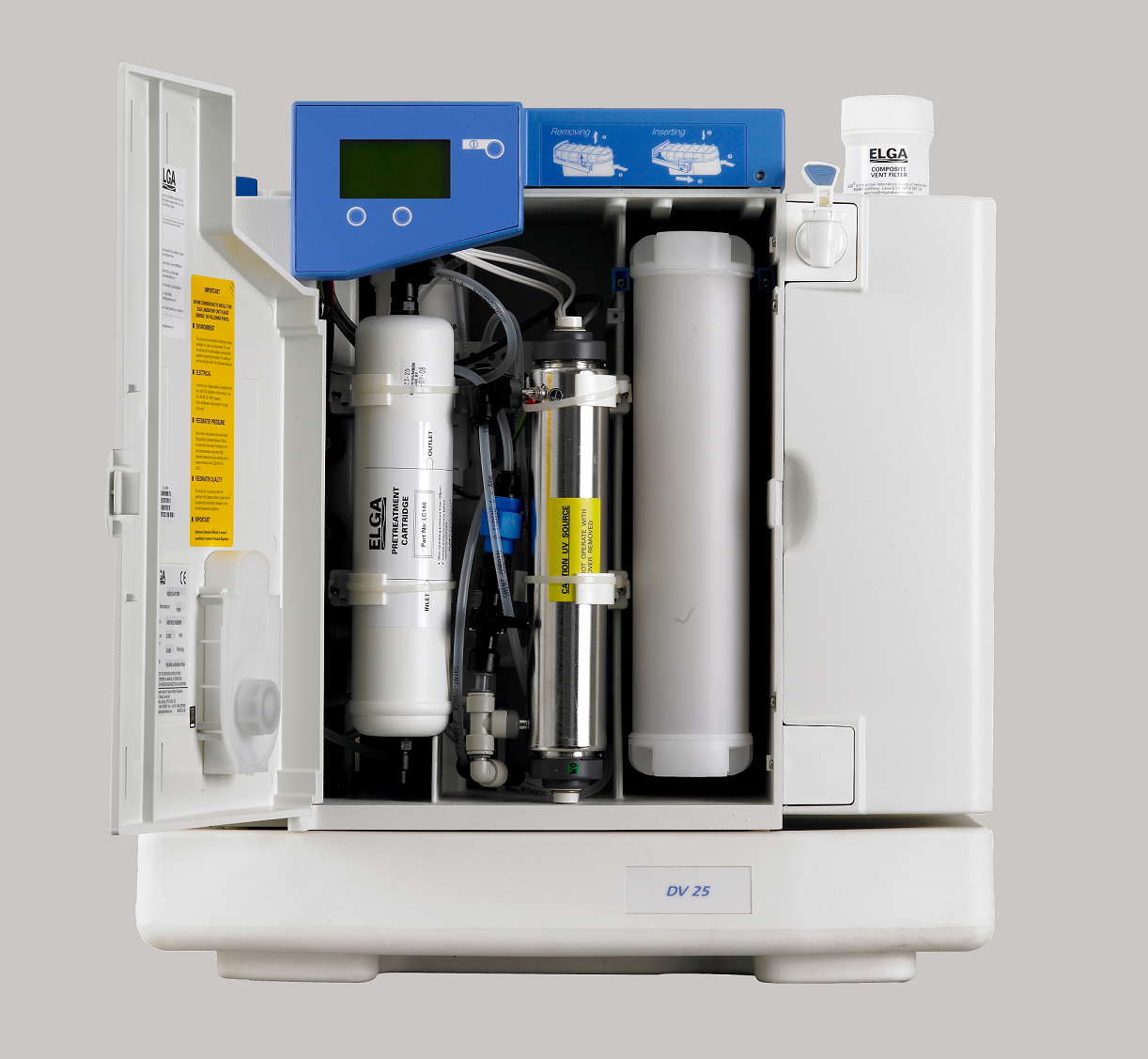

    MEDICA EDI with Model

    Tech Specs

    PRODUCT SPECIFICATIONSMEDICA EDI 15MEDICA EDI 30
    Dispense flowrate15 l/hr30 l/hr
    Inorganics (resistivity at 25°C)>10 MΩ.cm>10 MΩ.cm
    Organics (TOC)<30 ppb<30 ppb
    Bacteria<1 CFU/ml *<1 CFU/ml *
    Particles0.2 μm filter0.2 μm filter
    Silica<0.5 mg/l<0.5 mg/l
    Delivery flow rateUp to 1.5 l/minUp to 1.5 l/min
    PRODUCT SPECIFICATIONSMEDICA EDI 15MEDICA EDI 30
    Dispense flowrate15 l/hr30 l/hr
    Inorganics (resistivity at 25°C)>10 MΩ.cm>10 MΩ.cm
    Organics (TOC)<30 ppb<30 ppb
    Bacteria<1 CFU/ml *<1 CFU/ml *
    Particles0.2 μm filter0.2 μm filter
    Silica<0.5 mg/l<0.5 mg/l
    Delivery flow rateUp to 1.5 l/minUp to 1.5 l/min

    * Subject to correct operating and maintenance procedures. Installation of MEDICA EDI unit requires the LA800 pre-treatment assembly and LC281 pre-treatment filters.

    Consumables

    Pre-treatment Pack
    Pre-treatment Pack
    Part Number
    LC281
    Life expectancy
    6 months
    Impact of Overuse

    Chlorine, chloarmine and organics remain, increasing the burden on downstream consumables which will need more frequent and expensive changes

    EDI Stack
    EDI Stack
    Part Number
    LC219 or LC220
    Life expectancy
    4-5 years
    Impact of Overuse

    Ions will remain in the water

    Composite Vent Filter
    Composite Vent Filter
    Part Number
    LC136M2
    Life expectancy
    12 months
    Impurities Removed
    Dissolved Gases
    Impact of Overuse

    Increase in airborne contaminants and potential recontamination of purified water

    Ultra-micron filter
    Ultra-micron filter
    Part Number
    LC125
    Life expectancy
    14 months
    Impurities Removed
    Microorganisms & Bacteria
    Particulates
    Impact of Overuse

    Reduced flow-rates and bacterial specification will not be maintained

    UV Light render image
    UV Light
    Part Number
    LC105
    Life expectancy
    12-18 months
    Impact of Overuse

    Uncontrolled bacterial contamination and TOC levels are not reduced

    Reverse Osmosis
    Reverse Osmosis
    Part Number
    LC143
    Life expectancy
    24-36 months
    Impurities Removed
    Organic Compounds
    Inorganic Compounds
    Impact of Overuse

    High levels of organics and inorganics remain in the water reducing the functional life of the DI pack

    FAQs

    What is the MEDICA product range?

    The MEDICA product range is specifically targeted at the Clinical diagnostics market. The MEDICA will either directly feed (analysers which require a direct feed) or fill via a dispense gun the analyser with water that meets the recommendations of the Clinical Laboratory Standards Institute (CLSI).

    How often do I need to change my consumables?

    Consumables life depends entirely on the quality and volume of water being fed into the MEDICA product. Higher volumes and lower quality water will increase consumables usage.

    What feedwater is required?

    Normally potable water is sufficient as feedwater. However, the quality of potable water can vary between countries and regions. Feed water specifications can be found in the operators manual and the data sheet of the product. It is important that if the feedwater specification is exceeded suitable pre-treatment be installed to bring the feedwater within specifications.

    What is the MEDICA EDI?

    The MEDICA EDI is designed to reduce the running costs associated with purified water purification. This is because the EDI stack removes significant ionic content from the water before the water passes through downstream consumables, lowering the number of consumables which need to be changed.

    If it is cheaper to run should I always purchase the MEDICA EDI?

    Low quality feedwater with very high ionic content can cause saturation of the EDI stack nullifying its benefits. It is therefore important to ensure that the feedwater is within the product specifications.
