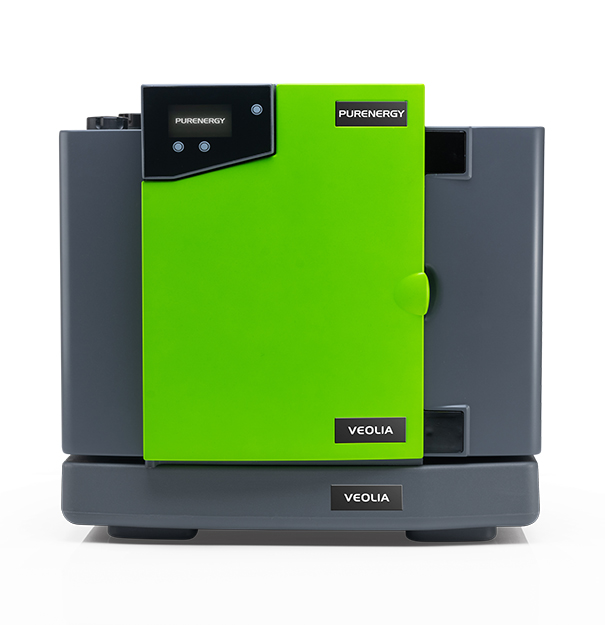

PURENERGY® 30
ELGA Veolia, purified water in mission critical applications worldwide.
Features- Compact: 550mm wide and 460mm height. Wall mountable, optional docking vessel - saving valuable space
- Easy to Use: A near plug & play installation process combined with automated monitoring & alarms enables a simple set up & operation
- Reliable: ELGA Veolia ‘s extensive experience in mission critical environments means reliability is tested, proven and unrivalled
- Guaranteed Water Purity: Regular recirculation through the system’s purification technologies ensure the water specification is maintained
- Eco-aware: The EDI technology minimizes environmental impact
- Simple Maintenance: The expertise gained from a global installed base delivers an easily serviceable unit
Delivering consistent performance of hydrogen generation electrolysers worldwide
The PURENERGY 30 is a compact, high performance water purification system for PEM Electrolyser Systems with purified water demands of up to 30 l/hour. Guaranteed water purity, space saving design and simple maintenance, makes the PURENERGY 30 an ideal solution to feed hydrogen Electrolyser Systems producing up to 30Nm³/h of hydrogen.
Tech Specs
| Product Water Specification | PURENERGY 30 |
|---|---|
| Water Resistivity | >1 MΩ cm |
| Total Organic Carbon (TOC) | <50 ppbC * |
| Silica | <3 ppb |
| Iron | <0,1 ng/l |
| Chromium | <0,1 ng/l |
| Nickel | <0,1 ng/l |
| Molybdenum | <0,1 ng/l |
| Aluminium | <0,1 ng/l |
| Copper | <0,1 ng/l |
| Titanium | <0,1 ng/l |
| Make Up Rates @ 15°C | 30 l/h |
| Maximum Recommended Pump Withdrawal Rate | 4 l/min (drawn from reservoir) |
| Recovery | >30 % |
| External Reservoir (gross volume) | 25 Liter |
| Daily Output (nominal max) | 720 Liter |
*Feedwater dependent
| Product Water Specification | PURENERGY 30 |
|---|---|
| Water Resistivity | >1 MΩ cm |
| Total Organic Carbon (TOC) | <50 ppbC * |
| Silica | <3 ppb |
| Iron | <0,1 ng/l |
| Chromium | <0,1 ng/l |
| Nickel | <0,1 ng/l |
| Molybdenum | <0,1 ng/l |
| Aluminium | <0,1 ng/l |
| Copper | <0,1 ng/l |
| Titanium | <0,1 ng/l |
| Make Up Rates @ 15°C | 30 l/h |
| Maximum Recommended Pump Withdrawal Rate | 4 l/min (drawn from reservoir) |
| Recovery | >30 % |
| External Reservoir (gross volume) | 25 Liter |
| Daily Output (nominal max) | 720 Liter |
*Feedwater dependent
Consumables
Impact of Overuse
Ions will remain in the water
EDI Stack
Part Number
LC219 or LC220
Life expectancy
4-5 years
Impact of Overuse
Increase in airborne contaminants and potential recontamination of purified water
Impact of Overuse
Uncontrolled bacterial contamination and TOC levels are not reduced
UV Light
Part Number
LC158
Life expectancy
12-18 months
Impact of Overuse
High levels of organics and inorganics remain in the water reducing the functional life of the DI pack
Reverse Osmosis
Part Number
LC143
Life expectancy
24 months
Impurities Removed
Impact of Overuse
Ions will remain in the water
EDI Stack
Part Number
LC219 or LC220
Life expectancy
4-5 years
Impact of Overuse
Increase in airborne contaminants and potential recontamination of purified water
Impact of Overuse
Uncontrolled bacterial contamination and TOC levels are not reduced
UV Light
Part Number
LC158
Life expectancy
12-18 months
Impact of Overuse
High levels of organics and inorganics remain in the water reducing the functional life of the DI pack
Reverse Osmosis
Part Number
LC143
Life expectancy
24 months
Impurities Removed
