PURELAB Chorus 1 Complete

The award-winning PURELAB Chorus range is designed around your needs, delivering accuracy, flexibility, and ease of use with an innovative and ergonomic design

Description

Case Studies

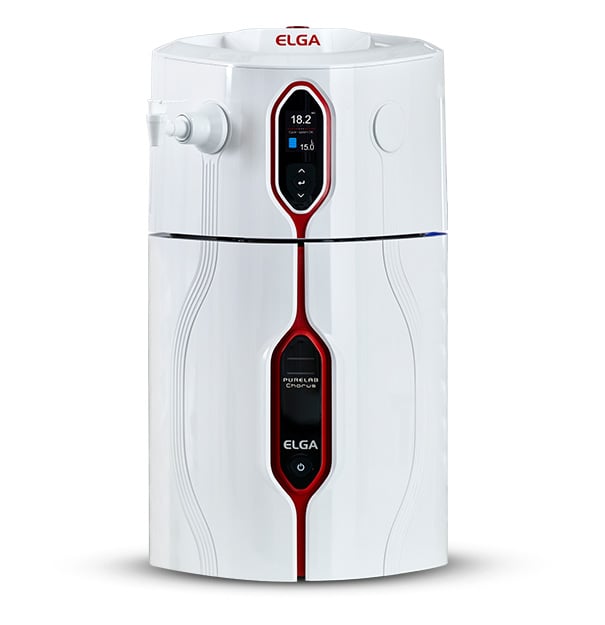

PURELAB Chorus 1 Complete

Flexible. Configurable. Simple.

One complete solution for the laboratory

PURELAB Chorus 1 Complete provides a complete solution from tap to ultrapure water direct from a potable water supply and is ideal for laboratories needing up to 480 liters of 18.2 MΩ.cm ultrapure water. With its simple and ergonomic design and ease-of-use, water can be dispensed directly from the system or from a choice of additional Halo Dispensers.

Fully Recirculating Recirculation of purified water through our modular reservoir to maintain consistent peak water purity at 18.2 MΩ.cm.
ELGA Biofilter (optional) When fitted, PURELAB Chorus 1 Complete produces water which is free from biologically active impurities.
Single System Solution Perfect single system solution for analytical and life science applications requiring 18.2 MΩ.cm.
Easy Access Front entry service doors provide quick and easy access to consumables.
Space Saving Design Designed to be modular and stackable to save space, whether wall-mounted or under the bench.
Data Capture Data capture via USB for system performance validation and software updates.

PURELAB Chorus 1 Complete With Tap Doors Open

Frequently Asked Questions (FAQs)

What is a PURELAB Chorus 1 Complete system?

PURELAB Chorus 1 Complete is a tap to ultrapure water purification system delivering up to 480 litres of lab water per day.

What type of applications are suitable for the water dispensed from a PURELAB Chorus 1 Complete system?

PURELAB Chorus 1 Complete is suitable for a range of applications including mass spectrometry, molecular biology, electrochemistry, atomic spectroscopy, liquid chromatography, gas chromatography, immunochemistry and general laboratory.

What are the benefits of the PURELAB Chorus 1 Complete system?

Besides offering ultrapure water for a range of applications, PURELAB Chorus 1 Complete offers water quality monitoring up to the point of dispense to help ensure valuable parameters are provided at all times; it provides inbuilt periodic recirculation to help minimise biofilm build up which can affect some applications, it has a range of dispensing solutions to suit different applications and budgets as well as the ability to adapt to where there is available space. It is also an easy to use and maintain system.

How many product variants are available?

There are 4 variants available; 10l/hr and 20l/hr with or without boost pump.

What storage reservoirs are available with the PURELAB Chorus 1 Complete system?

The PURELAB Chorus 1 Complete system offers customers a choice of 4 reservoir sizes; 15l, 30l, 60l and 100l.

Suitable Applications

General Laboratory Water

Microbiology

Atomic Absorption Spectroscopy

Gas Chromatography

Liquid Chromatography (HPLC)

PURELAB Chorus 1 Complete

Fully Recirculating

Recirculation of purified water through our modular reservoir to maintain consistent peak water purity at 18.2 MΩ.cm

ELGA Biofilter (optional)

When fitted, PURELAB Chorus 1 Complete produces water which is free from biologically active impurities

Single System Solution

Perfect single system solution for analytical and life science applications requiring 18.2 MΩ.cm

Easy Access

Front entry service doors provide quick and easy access to consumables

Space Saving Design

Designed to be modular and stackable to save space, whether wall-mounted or under the bench

Data Capture

Data capture via USB for system performance validation and software updates

PURELAB Chorus 1 Halo Dispenser

Unique Halo glow

Unique Halo glow, changes colour and flashes alerting you of changes in system performance

Prioritized information

Prioritized information displayed at all times (system status, TOC, alarm) for absolute confidence as you dispense

Clear water purity display

Clear water purity display for absolute confidence as you dispense

Real-time TOC

Real-time TOC monitoring for critical applications. For units with TOC capability

Water purity monitor

Water purity is monitored right up to the point of use giving you peace of mind

Flexible dispensing in six different ways

Variable flow – drop by drop or up to two liters per minute

AutoVolume dispense from 50ml up to 60 liters

Default AutoVolume setting to suit your personal volume needs

Hands free with optional foot control dispense

Locked dispense at your selected flow

Hand-held dispensing with Halo Flexible Dispenser

USB Data capture

Data capture via USB for system performance validation

PURELAB Chorus Reservoir

Easy display

Direct display of stored purified water on the front of the reservoir for easy identification

Auto fill

Monitoring of reservoir water levels with automated refill ensures purified water is always available. Actual water volume will be displayed next to the LEDs for each reservoir size

Hygienic Overflow

Hygienic overflow in the unlikely event of water system malfunction

Polyethylene construction

Inert opaque polyethylene construction with smooth inner surface

Dispense tap

Positioned to minimize accidental operation or damage (Choice of positions)

Multiple positioning

Multiple positioning / mounting options to suit your laboratory layout

Advanced vent filtration

Preventing the ingress of airborne bacteria, particulates, organic vapours and CO₂

Product Specifications	PURELAB Chorus 1 Complete 10 l/hr	PURELAB Chorus 1 Complete 20 l/hr
Dispense flowrate	>1.5 l/min	>1.5 l/min
Inorganics (resistivity at 25°C)	18.2 MΩ.cm	18.2 MΩ.cm
Organics (TOC)	<5 ppb	<5 ppb
Bacteria	<0.001 CFU/ml *	<0.001 CFU/ml *
Bacterial endotoxin	<0.001 EU/ml *	<0.001 EU/ml *
pH	Effectively neutral	Effectively neutral
Particles	0.2 μm *	0.2 μm *
DNase	<5 pg/ml	<5 pg/ml
RNase	<1 pg/ml	<1 pg/ml
Daily usage (max)	100 l/day	440 l/day
Daily usage (min)	1 l/day	10 l/day
Delivery flow rate	10 l/hr	20 l/hr

* With POU filter fitted

Importance of ultrapure Type 1+ water for the development of generic medicines

The need to guarantee delivery of ultrapure type 1+ water reliably and consistently is ever increasing as new analytical techniques and applications evolve with lower detection limits. Research and development laboratories require a constant source of high purity water to ensure the accuracy of results in their workflow

Very Sleek Look with Excellent Performance!

Read the review

Read the Review

Composite Vent Filter

Part Number

LC216

Life expectancy

6 months

Impurities Removed

Dissolved Gases

Impact of Overuse

Increase in airborne contaminants and potential recontamination of purified water

Point-of-use Filter

Part Number

LC145

Life expectancy

3 months

Impurities Removed

Microorganisms & Bacteria

Particulates

Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Degasser Module

Part Number

LC181

Pre-treatment Pack

Part Number

LC241

Life expectancy

6 months

Impact of Overuse

Chlorine, chloarmine and organics remain, increasing the burden on downstream consumables which will need more frequent and expensive changes

Reverse Osmosis

Part Number

LC240

Life expectancy

24-36 months

Impurities Removed

Organic Compounds

Inorganic Compounds

Impact of Overuse

High levels of organics and inorganics remain in the water reducing the functional life of the DI pack

UV Light

Part Number

LC210

Life expectancy

12-18 months

Impurities Removed

Microorganisms & Bacteria

Impact of Overuse

Uncontrolled bacterial contamination and TOC levels are not reduced

PURELAB Chorus Storage Reservoirs

Our unique range of storage solutions is designed to maintain the optimum purity of stored water and provide effective protection against airborne contaminants. They are designed to accommodate PURELAB Chorus water purification systems by maximizing the space in a single integral, compact unit or to sit independently to suit the layout of your laboratory.

Multiple positioning Multiple positioning/mounting options to suit your laboratory layout.
Polyethylene construction Inert opaque polyethylene construction with a smooth inner surface.
Dispense tap Positioned to minimize accidental operation or damage (choice of positions).
Advanced vent filtration Prevents the ingress of airborne bacteria, particulates, organic vapors and CO2.
Autofill Monitoring of reservoir water levels with automated refill ensures purified water is always available.
Hygienic Overflow Hygienic overflow in the unlikely event of water system malfunction.
Easy display Direct display of stored purified water on the front of the reservoir for easy identification.

PURELAB Chorus Halo Dispense Solutions

The modular nature of PURELAB Chorus means that your dispense solutions sit independently from the unit. You can even have the Halo Dispenser installed in an adjacent laboratory. With Halo Dispenser you have the ultimate flexibility.

Clear Display Prioritized information displayed at all times (system status, alarm) for absolute confidence as you dispense.
Multiple Positioning Position the dispenser independent from the water purification system. Optimize your lab space.
Flexible Dispensing ● Variable flow ● Auto-volume dispense ● Hands-free ● Locked dispense ● Hand-held dispensing

PURELAB® Reservoir 15 l

Capacity: 15 liters

Dimensions: 470 (h) x 376 (w) x 340 (d)

Flow Rate: 6 l/min

PURELAB® Reservoir 30 l

Capacity: 30 liters

Dimensions: 660 (h) x 376 (w) x 340 (d)

Flow Rate: 8 l/min

PURELAB® Reservoir 60l

Capacity: 60 liters

Dimensions: 570 (h) x 532 (w) x 522 (d)

Flow Rate: 10 l/min

PURELAB® Reservoir 100l

Capacity: 100 liters

Dimensions: 806 (h) x 532 (w) x 522 (d)

Flow Rate: 10 l/min

PURELAB Chorus Halo Dispenser

Modular nature of PURELAB Chorus means that your dispense solutions can sit independently from the unit. You can even have them installed in adjacent labs.

✓ Fixed handset
✓ Variable flow rate dispense
✓ Drop-by-drop control
✓ Locked dispense

PURELAB Chorus Halo Advanced Dispense

Modular nature of PURELAB Chorus means that your dispense solutions can sit independently from the unit. You can even have them installed in adjacent labs.

✓ Fixed handset
✓ Variable flow rate dispense
✓ Drop-by-drop control
✓ Locked dispense
✓ Purity monitoring to point-of-use
✓ Auto volume dispense

PURELAB Chorus Halo Flexible Dispense

Modular nature of PURELAB Chorus means that your dispense solutions can sit independently from the unit. You can even have them installed in adjacent labs.

✓ Flexible handset
✓ Variable flow rate dispense
✓ Drop-by-drop control
✓ Locked dispense
✓ Purity monitoring to point-of-use
✓ Auto volume dispense

General Laboratory Water

Water is used across the lab in a plethora of different techniques and applications. From glassware washing to autoclave filling, water is a common reagent.

SELECT

Microbiology

Microbiological analysis is the use of biological, biochemical, molecular or chemical methods for the detection, identification or enumeration of microorganisms in a material. It is often applied to disease causing and spoilage microorganisms.

SELECT

Atomic Absorption Spectroscopy

Atomic absorption spectroscopy (AAS) measures the absorption of light by gaseous free metallic ions. The technique is used to determine the total concentrations of individual elements in a sample.

SELECT

Gas Chromatography

Gas chromatography is one of the most sensitive and commonly used analytical techniques for the separation and determination of various compounds.

SELECT

Liquid Chromatography (HPLC)

Liquid chromatography (LC) is used to separate mixtures of species in solution. They can then be detected by sensitive techniques including mass spectrometry and UV spectrophotometry. High Performance Liquid Chromatography (HPLC) and Ion Chromatography (IC) are the most common LC methods used.

SELECT

Electrochemistry

Electrochemistry: the study of chemical changes of particles caused by the movement of electrons from one element to another. Is your pure water adequate?

SELECT

Spectrophotometry

Every compound will absorb or transmit light over a certain range of wavelengths, and so that this can be used to measure the amount of a known chemical substance.

SELECT

ICP-MS and ICP-OES

ICP-MS is the most sensitive way of determining multiple elements in liquids. Solutions are atomised and ionised in a high energy plasma and the resulting ions measured by mass spectrometry. ICP-OES uses the light emitted from the plasma to determine the elements present.

SELECT

Immunochemistry

Immunochemistry covers both the function of the immune system and the use of immunoassay technologies for research and diagnostics.

SELECT

To learn more about the benefits of PURELAB Chorus 1 Complete, contact us and we’ll put you in touch with one of our Approved Partners and Lab Water Specialists.

Find An ELGA Approved Partner & Laboratory Water Specialist Today!

Find a Partner

PURELAB Chorus Software Version 4.0.0 includes bug fixes and improvements. Click here to download now

Back To Products

PURELAB Chorus 1 Complete is suited to our work because its design focuses on delivering the optimal purity, defined as a requirement of our SOP, while providing an easy to use interface. We know that we will always be getting the purity of water that is essential to our applications.
