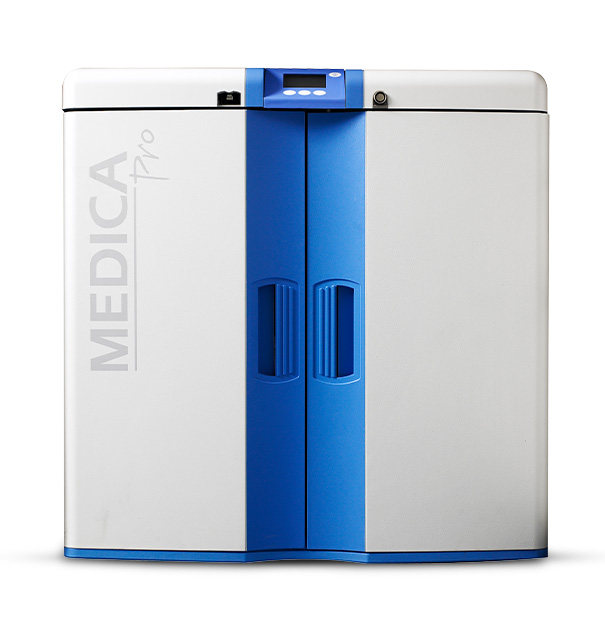

MEDICA Pro-LPS
Purifying pre-treated water from a loop or central supply
Designed to supply CLRW grade water to large or multiple clinical analyzers. The MEDICA Pro-LPS is the ideal choice when high purity water is required from a pre-treated feed. Dispensing CLRW grade water at rates of up to 4 liters/min the Pro-LPS can supply a mix of clinical analyzers throughout one lab.
"I am very pleased with the ease of operation and maintenance with the ELGA system. When problems occur that are beyond the user scope of practice, the field service engineer is very prompt and knowledgeable. Service is expedited and the system is back in operation very quickly "
Features
- Purifying pre-treated water from a loop or central supply.
- Designed to supply CLRW grade water to large or multiple clinical analyzers.
- The MEDICA Pro-LPS is the ideal choice when high purity water is required from a pre-treated feed.
- Dispensing CLRW grade water at rates of up to 4 liters/min the Pro-LPS can supply a mix of clinical analyzers throughout one lab.
Ideally suited for:
• Multiple clinical analyzers installed in a lab with an existing ring main system that is not of sufficient quality to meet CLRW specification
• Variable water specifications across a laboratory with a central system providing the general grade water and the MEDICA Pro-LPS polishes water to meet the specific specialist analyzer needs
Tech Specs
| PRODUCT SPECIFICATIONS | MEDICA PRO LPS |
|---|---|
| Inorganics (resistivity at 25°C) | >10 MΩ.cm |
| Organics (TOC) | <30 ppb |
| Bacteria | <1 CFU/ml |
| Particles | 0.05 μm |
| Silica | <0.05 mg/l |
| Delivery flow rate | Up to 4 l/min |
| PRODUCT SPECIFICATIONS | MEDICA PRO LPS |
|---|---|
| Inorganics (resistivity at 25°C) | >10 MΩ.cm |
| Organics (TOC) | <30 ppb |
| Bacteria | <1 CFU/ml |
| Particles | 0.05 μm |
| Silica | <0.05 mg/l |
| Delivery flow rate | Up to 4 l/min |
Consumables
High levels of organics and inorganics remain in the water reducing the functional life of the DI pack
Increase in airborne contaminants and potential recontamination of purified water
High levels of organics and inorganics remain in the water reducing the functional life of the DI pack
High levels of organics and inorganics remain in the water reducing the functional life of the DI pack
Chlorine, chloarmine and organics remain, increasing the burden on downstream consumables which will need more frequent and expensive changes
Chlorine, chloarmine and organics remain, increasing the burden on downstream consumables which will need more frequent and expensive changes
Weakly bound ions are released back into the water reducing resistivity
Reduced flow-rates and bacterial specification will not be maintained
Uncontrolled bacterial contamination and TOC levels are not reduced
faqs
- What is the MEDICA product range?
The MEDICA product range is specifically targeted at the Clinical diagnostics market. The MEDICA will either directly feed (analysers which require a direct feed) or fill via a dispense gun the analyser with water that meets the recommendations of the Clinical Laboratory Standards Institute (CLSI).
- How often do I need to change my consumables?
Consumables life depends entirely on the quality and volume of water being fed into the MEDICA product. Higher volumes and lower quality water will increase consumables usage.
- What feedwater is required?
Normally potable water is sufficient as feedwater. However, the quality of potable water can vary between countries and regions. Feed water specifications can be found in the operators manual and the data sheet of the product. It is important that if the feedwater specification is exceeded suitable pre-treatment be installed to bring the feedwater within specifications.
- What is the MEDICA Pro LPS?
The MEDICA Pro LPS is a product which has been designed for sites which have pre-treated water. The LPS does not have Reverse Osmosis filters so needs pre-treated water before it purifies it to the CLSI guidelines.
- Why would I buy the MEDICA Pro LPS?
If you have a pre-treated RO ring main in your building you may choose not to have one on your system. This will reduce your long term running costs.
