Pharma Compliance with Model

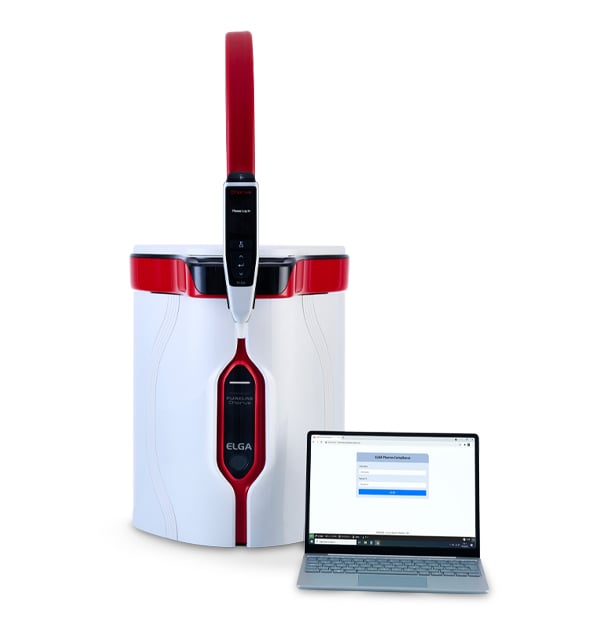

PURELAB® Pharma Compliance

A reliable, intuitive and simple to use system that meets GxP requirements.

Features
  • Secure software offers a range of admin, security and data features providing evidence to meet FDA (FDA 21 CFR Part 11) and EU (EUDRALEX Annex 11) standards for digital record keeping.
  • Purification processes fulfil United States Pharmacopeia standards 643 and 645.
  • Supported by a global network of service teams with significant experience of supporting laboratory equipment subject to validation under GMP.
  • Space saving to enhance QC output, designed to be modular and stackable to save space, whether wall-mounted or under the bench.
  • Cost effective design delivering water to support QC tests necessary to validate drug purity in pharma manufacturing. Consumables are designed to minimise cost and environmental waste. ELGA delivers lower total cost of ownership that can be easily integrated into any laboratory.

Bringing ELGA's ultrapure water purification to GXP Quality Control Laboratories

The Pharma Compliance delivers a lab water solution focused on building the perfect relationship between discovery, production and traceability, resulting in an intuitive, efficient and compliant purification system.

PURELAB Pharma Compliance is packed with innovative features optimised for QC laboratories. It offers all the necessary purification, software capabilities, qualification documentation and online support services necessary for the validation required to meet Good Manufacturing Practice (GMP). It includes secure software providing the evidence to meet FDA and EU standards for digital record keeping. Purification processes fulfil United States Pharmacopeia standards 643 and 645. Qualification documents provided enable the unit to support labs subject to validation under GxP.

"Highly competitive total cost of ownership, robust traceability and great ergonomics combine to create a simply compliant, simply effective and simply transparent solution. "

Tech Specs

PRODUCT SPECIFICATIONS
PURELAB Pharma Compliance
Dispense Flowrateup to 2 L/min
Inorganics (resistivity at 25°C)18.2 MΩ.cm
Organics (TOC)1–3 ppb *
Bacteria<0.001 CFU/ml **
Bacterial Endotoxin<0.001 EU/ml
pHEffectively Neutral
Particles<0.01 μm
DNase<5 pg/ml
RNase<1 pg/ml
Daily Usage (max)120 l/day
Daily Usage (min)1 l/day
Delivery Flow RateUp to 2.0 l/min
PRODUCT SPECIFICATIONS
PURELAB Pharma Compliance
Dispense Flowrateup to 2 L/min
Inorganics (resistivity at 25°C)18.2 MΩ.cm
Organics (TOC)1–3 ppb *
Bacteria<0.001 CFU/ml **
Bacterial Endotoxin<0.001 EU/ml
pHEffectively Neutral
Particles<0.01 μm
DNase<5 pg/ml
RNase<1 pg/ml
Daily Usage (max)120 l/day
Daily Usage (min)1 l/day
Delivery Flow RateUp to 2.0 l/min

* dependant on feed water

** with a LC134 or LC145 or LC197 Point-of-use 0.2μm

Consumables

Accessories

Optimizer Pack LC243
Optimizer Pack
Part Number
LC243
Life expectancy
6 months
Impurities Removed
Ultra filter
Impact of Overuse

Bacterial and endotoxin specification wil lnot be maintained. Reduced flow rate.

Ultra filter
Part Number
LC151
Life expectancy
24 months
Impurities Removed
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC145
Life expectancy
3 months
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC134
Life expectancy
6 months
UV Light
Impact of Overuse

Uncontrolled bacterial contamination and TOC levels are not reduced

UV Light
Part Number
LC210
Life expectancy
12-18 months
Impurities Removed
DI Pack
Impact of Overuse

Weakly bound ions are released back into the water reducing resistivity

DI Pack
Part Number
LC232, LC244, LC245 or LC246
Life expectancy
12 months
POU Filter
Biofilter - Point of Use Filter
Part Number
LC197
Life expectancy
3 months
Optimizer Pack LC243
Optimizer Pack
Part Number
LC243
Life expectancy
6 months
Impurities Removed
Ultra filter
Impact of Overuse

Bacterial and endotoxin specification wil lnot be maintained. Reduced flow rate.

Ultra filter
Part Number
LC151
Life expectancy
24 months
Impurities Removed
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC145
Life expectancy
3 months
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC134
Life expectancy
6 months
UV Light
Impact of Overuse

Uncontrolled bacterial contamination and TOC levels are not reduced

UV Light
Part Number
LC210
Life expectancy
12-18 months
Impurities Removed
DI Pack
Impact of Overuse

Weakly bound ions are released back into the water reducing resistivity

DI Pack
Part Number
LC232, LC244, LC245 or LC246
Life expectancy
12 months
POU Filter
Biofilter - Point of Use Filter
Part Number
LC197
Life expectancy
3 months

FAQs

I don’t have a network connection in the lab?

The Pharma Compliance doesn't need internet or network access. USB connection only.

Can you prove that there are no threats for our network associated with the activation of PURELAB Pharma Proposition?

The PURELAB Pharma Compliance Compliance is not directly connected to your IT network and will therefore not pose a threat to its integrity. Exporting data from AuditSure to your LIMS, Server, ELN (Electronic Laboratory Notebook) and SDMS/ECN is in an open file format. You will need to follow your own data protection and security protocols after data is extracted.

Will we be able to provide on-site TOC Validation (customer site)?

Yes, the Suitability test is required to be performed on site.

Can ELGA LabWater or its distributors connect to PURELAB Pharma Proposition remotely?

No. You can send an export diagnostic package by email for remote diagnostic support.
