PURELAB flex 3

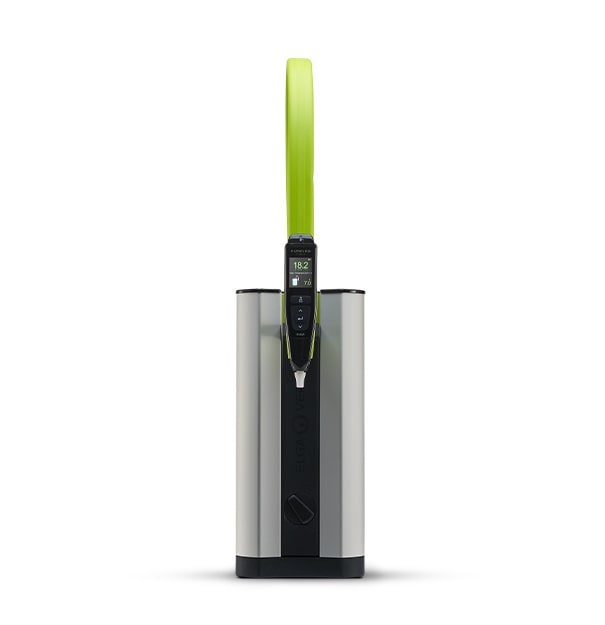

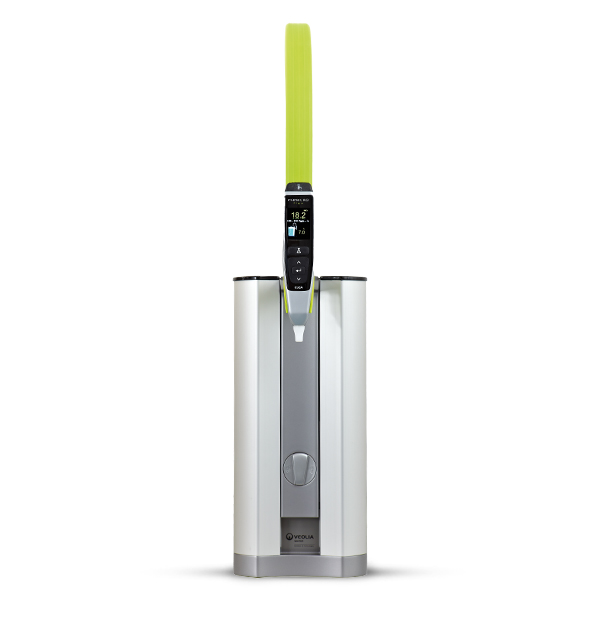

PURELAB® flex 3

Powerful, compact and flexible ultrapure water delivery.

Ideally suited for: Mass Spectrometry, Molecular biology, Electrochemistry, Atomic Spectroscopy, Liquid Chromatography, Cell cultures, Gas Chromatography, Immunochemistry, Spectrophotometry, Media / Buffer prep, General chemistry


Features
  • Provides a reliable supply of: Type 1 water from tap.
  • Space saving design  The compact unit can be placed on the bench or can be wall mounted and has an integrated 7 liter reservoir filled by a 20 l/hr RO membrane, ensuring that water is always available.
  • Fully Recirculating  Ensuring the highest microbial purity and guaranteeing pure water at the point-of-use as recirculation of the water occurs from the reservoir right to the point of use.
  • Real-time TOC Monitoring  Provides complete confidence in organic purity and clear display at all times. The final quality sensor is placed at the entry of the flexible dispenser giving you peace of mind.
  • Flexible dispenser  The intuitive dispenser offers a clear display of the water purity for absolute confidence as you dispense.
  • Easy to maintain  The front doors ensure easy access to the consumables, making them quick and easy to replace.
  • Data capture Data capture via USB for system performance validation and software updates.
  • Designed with Sustainability in Mind
    New ‘eco-mode’ and RO module reduces energy consumption by up to 55%
    - Manufactured from up to 55% reclaimed materials
    - Innovative protein based RO reduces water to drain by 20%

Power and flexibility.  A small unit with powerful capabilities

The PURELAB flex 3 is the ultimate system providing tap to ultrapure water in one single unit, and is uniquely designed around your needs.  It combines ease of use with the accurate delivery of pure water.  The flexible modular system can be configured to deliver the quality of water you need for your applications.

" Great system, fantastic support! Easy to use, and after sales care has been outstanding. Consumables are widely available and a snap to install."

TOM YUZVINSKY
CORELESS TECHNOLOGIES, INC.

Tech Specs

PRODUCT SPECIFICATIONSPURELAB FLEX 3PURELAB FLEX 3+
Dispense flowrateUp to 2.0 l/minUp to 2.0 l/min
Inorganics (resistivity at 25°C)18.2 MΩ.cm18.2 MΩ.cm
Organics (TOC)<5 ppb<5 ppb
Bacteria<0.001 CFU/ml **<0.001 CFU/ml **
Bacterial endotoxin<0.001 EU/ml **<0.001 EU/ml **
pHEffectively neutralEffectively neutral
DNase<5 pg/ml<5 pg/ml
RNase<1 pg/ml<1 pg/ml
Daily usage (max)10 l/day10 l/day
Delivery flow rateUp to 2 l/minUp to 2 l/min
PRODUCT SPECIFICATIONSPURELAB FLEX 3PURELAB FLEX 3+
Dispense flowrateUp to 2.0 l/minUp to 2.0 l/min
Inorganics (resistivity at 25°C)18.2 MΩ.cm18.2 MΩ.cm
Organics (TOC)<5 ppb<5 ppb
Bacteria<0.001 CFU/ml **<0.001 CFU/ml **
Bacterial endotoxin<0.001 EU/ml **<0.001 EU/ml **
pHEffectively neutralEffectively neutral
DNase<5 pg/ml<5 pg/ml
RNase<1 pg/ml<1 pg/ml
Daily usage (max)10 l/day10 l/day
Delivery flow rateUp to 2 l/minUp to 2 l/min

* Dependant on feed water

** With POU filter fitter

Consumables

POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point of Use Filter
Part Number
LC197
Life expectancy
3 months
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC145
Life expectancy
3 months

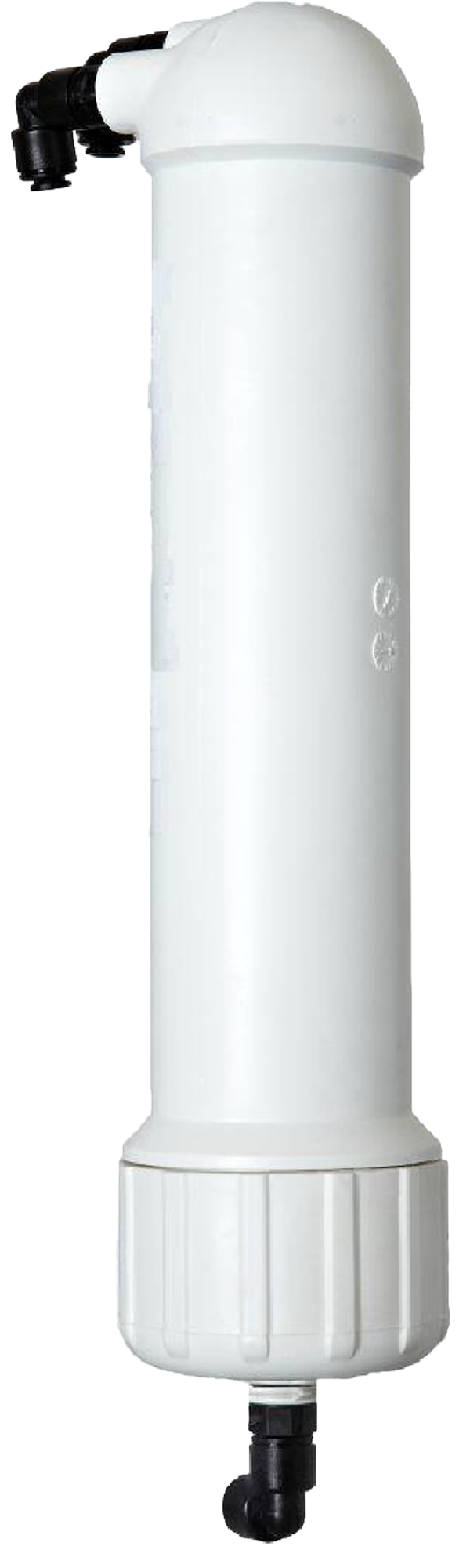

Reverse Osmosis
Impact of Overuse

High levels of organics and inorganics remain in the water reducing the functional life of the DI pack

Reverse Osmosis
Part Number
LC143
Life expectancy
24 months
DI Pack
Impact of Overuse

Weakly bound ions are released back into the water reducing resistivity

DI Pack
Part Number
LC214
Life expectancy
6 months
UV Light
Impact of Overuse

Uncontrolled bacterial contamination and TOC levels are not reduced

UV Light
Part Number
LC210
Life expectancy
12-18 months
Impurities Removed
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point of Use Filter
Part Number
LC197
Life expectancy
3 months
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC145
Life expectancy
3 months
Reverse Osmosis
Impact of Overuse

High levels of organics and inorganics remain in the water reducing the functional life of the DI pack

Reverse Osmosis
Part Number
LC143
Life expectancy
24 months
DI Pack
Impact of Overuse

Weakly bound ions are released back into the water reducing resistivity

DI Pack
Part Number
LC214
Life expectancy
6 months
UV Light
Impact of Overuse

Uncontrolled bacterial contamination and TOC levels are not reduced

UV Light
Part Number
LC210
Life expectancy
12-18 months
Impurities Removed

FAQs

What is a PURELAB flex 3 system?

PURELAB flex 3 produces ultra pure water (Type I) directly from tap water.

What type of applications are suitable for water dispensed from the PURELAB flex 3 system?

PURELAB flex 3 is designed for a range of applications including electrochemistry, atomic spectroscopy, ic (Ion Chromatography), liquid chromatography, immunochemistry, hplc, molecular biology, plant tissue culture, electrophoresis & mammalian cell culture.

What are the benefits of the PURELAB flex 3 system?

PURELAB flex 3 offers customers a range of benefits from being intuitive and easy to use , easy to install and commission, flexible dispensing which allows customers to dispense water into a range of container sizes and shapes. It uses minimal lap space, is easy to operate and maintain and can be used for a wide range of lab applications. Other benefits includes real-time TOC monitoring which is calculated every 2-3 seconds to give a real time TOC reading for maximum assurance; water quality monitoring up to the point of dispense to help ensure valuable parameters are provided at all times and inbuilt periodic recirculation to help minimise biofilm build up which can affect some applications.

What is the size of the storage reservoir in a PURELAB flex 3?

PURELAB flex 3 is designed with an integrated 7 litre reservoir.

What is the difference between a PURELAB flex 3 and 4?

Unlike PURELAB flex 3, flex 4 does not have a RO membrane. It has to be fed with pre-treated water.
