PURELAB flex 1

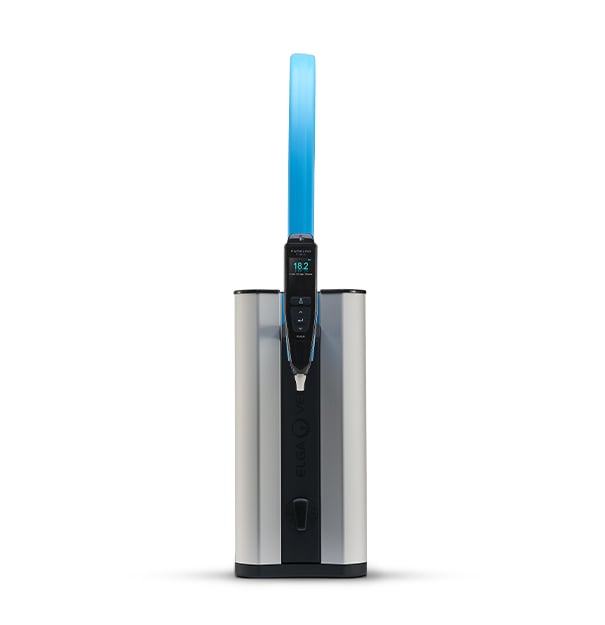

PURELAB® flex 1

Simple, elegant water dispenser and deionization system for your distribution.

Features
  • Customized settings  Be in control of your PURELAB flex by customizing the settings to suit your application.
  • Simplicity  Simple to insatall, operate and maintain with prioritized information displayed at all times (system status, alarm) for absolute confidence as you dispense.
  • Data capture Download all of the data to USB for system performance validation and software updates.
  • Easy to Use  Ergonomic design with features including auto volumetric dispense and height adjustability.
  • Space Saving  Space saving and compact dispenser which can be placed on the bench or wall mounted.

Ideally suited for: Dispensing, With DI pack: General lab, Applications requiring type 2 water


Simplicity and Elegance. The best dispenser for your distribution system

The PURELAB flex 1 is designed to dispense water when it is connected to a reservoir or distribution loop.
This system works as a dispenser as well as a simple deionization system.

"The Elga Purelab flex is a great product that the whole lab benefits from! This is truly one of the best companies I've had the pleasure of interacting with, and I will always continue ordering and using their products. I cannot recommend them enough! Great instrument, and consistently great service! 5/5"

Mary Salkovski
University of Illinois at Chicago

Tech Specs

PRODUCT SPECIFICATIONSPURELAB FLEX 1PURELAB FLEX 1 (WITH PURIFICATION PACK)
Dispense flowrateUp to 2.0 l/minUp to 2.0 l/min
Inorganics (resistivity at 25°C)As per feedwater18.2 MΩ.cm
Organics (TOC)Dependant on feedwaterDependant on feedwater
Bacteria<0.1 CFU/ml *<0.1 CFU/ml *
Bacterial endotoxinN/A<0.001 EU/ml *
pHEffectively neutralEffectively neutral
Silica<2 ppm<2 ppm
DNaseN/AN/A
RNaseN/AN/A
Daily usage (max)100 l/day100 l/day
Daily usage (min)1 l/day1 l/day
Delivery flow rateUp to 2 l/minUp to 2 l/min
PRODUCT SPECIFICATIONSPURELAB FLEX 1PURELAB FLEX 1 (WITH PURIFICATION PACK)
Dispense flowrateUp to 2.0 l/minUp to 2.0 l/min
Inorganics (resistivity at 25°C)As per feedwater18.2 MΩ.cm
Organics (TOC)Dependant on feedwaterDependant on feedwater
Bacteria<0.1 CFU/ml *<0.1 CFU/ml *
Bacterial endotoxinN/A<0.001 EU/ml *
pHEffectively neutralEffectively neutral
Silica<2 ppm<2 ppm
DNaseN/AN/A
RNaseN/AN/A
Daily usage (max)100 l/day100 l/day
Daily usage (min)1 l/day1 l/day
Delivery flow rateUp to 2 l/minUp to 2 l/min

* With POU filter fitted

Consumables

POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC145
Life expectancy
3 months
DI Pack
Impact of Overuse

Weakly bound ions are released back into the water reducing resistivity

DI Pack
Part Number
LC208
Life expectancy
12 months
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC145
Life expectancy
3 months
DI Pack
Impact of Overuse

Weakly bound ions are released back into the water reducing resistivity

DI Pack
Part Number
LC208
Life expectancy
12 months

FAQS

What is a PURELAB flex 1 system?

PURELAB flex 1 is a dispensing and monitoring system. When connected to a reservoir or a distribution loop, it delivers water without purifying it. It does not have a UV lamp.

What are the benefits of the PURELAB flex 1 system?

PURELAB Flex 1 offers customers a range of benefits from being intuitive and easy to use , easy to install and commission, flexible dispensing which allows customers to dispense water into a range of container sizes and shapes. It uses minimal lap space, is easy to operate and maintain and can be used for a wide range of lab applications. Other benefits includes real-time TOC monitoring which is calculated every 2-3 seconds to give a real time TOC reading for maximum assurance; water quality monitoring up to the point of dispense to help ensure valuable parameters are provided at all times and inbuilt periodic recirculation to help minimise biofilm build up which can affect some applications.

What type of applications are suitable for water dispensed from the PURELAB Flex 1 system?

Ideally suited for: Dispensing, With DI pack: General lab, Applications requiring type 2 water
