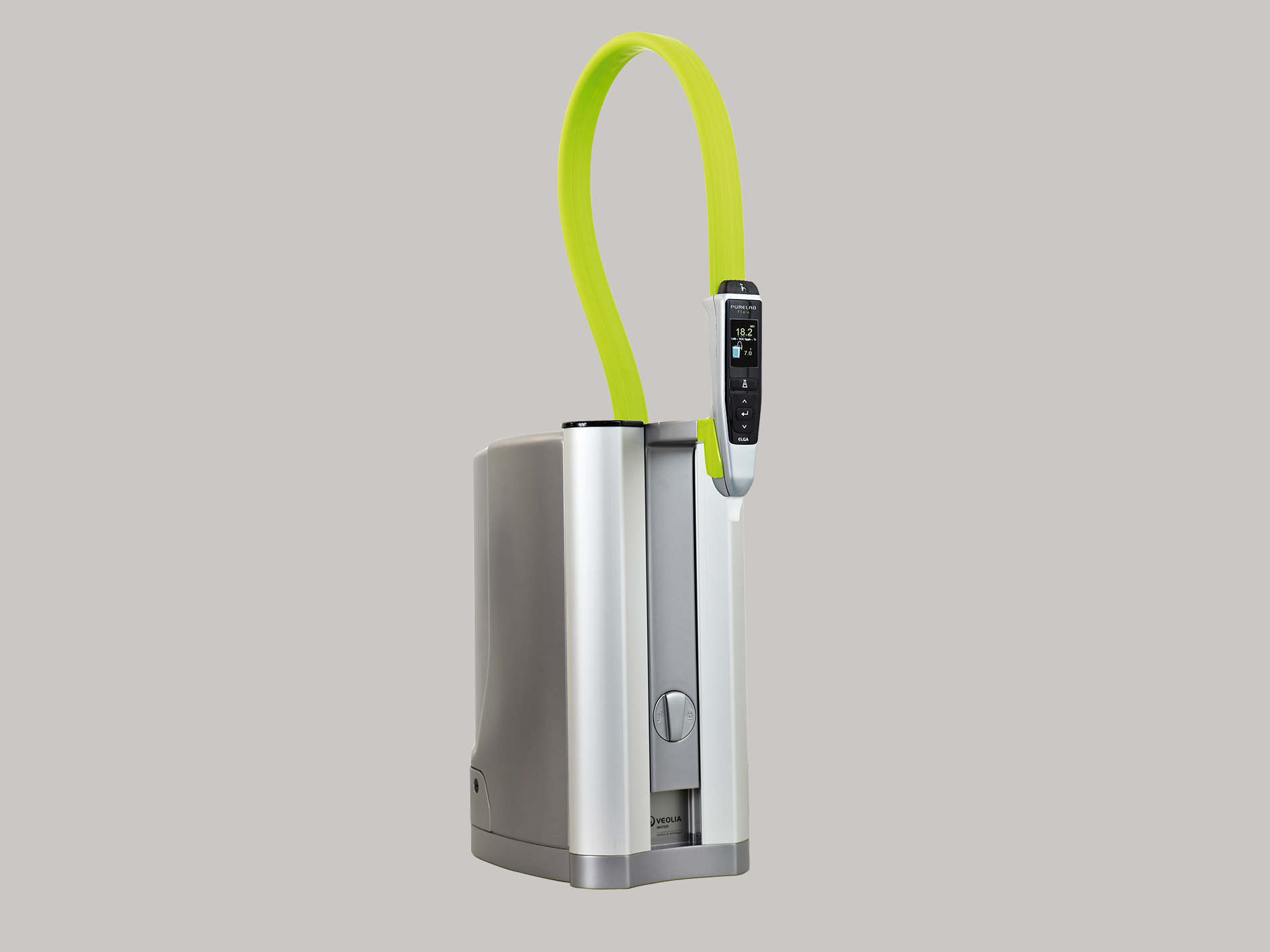

PURELAB flex 5

PURELAB® flex 5

Unique water purification system for automated ion chromatography.

Features
  • Integral built-in reservoir for pressureless ultrapure water supply - developed for Metrohm Dosino technology
  • Closed system avoids eluent contamination due to water handling and exposure
  • Monitor water purity via USB datalog ensuring analytical performance during test batch
  • Prevent column clogging and increases column life: UV (185/254 nm) ensures bacteria and organics control
  • Stable retention times: no dissolved CO2 in water prevents pH change
  • Enhanced detection limits through improved stability and purity
  • Simultaneous multi-usage: eluent generation, system rinsing and general laboratory work
  • Reduces eluent preparation to minimum compared to using bottled water

A unique automated solution for Ion Chromatography. Switch on and walk away, Ion Chromatography made easy.

A standalone Ion Chromatography and water purification system all-in-one. The PURELAB flex 5 & flex 6 is designed to couple directly with the Metrohm 941 Eluent Production Module. This combination delivers complete automation. No need to monitor eluent concentration make-up, no need to refill or to set reminders to refill the water.

This unique Ion Chromatography solution is produced by two of the world’s leading manufacturers: Metrohm, market leader titration and voltammetry and a leading manufacturer for Ion Chromatography and ELGA®, the market leader in innovation and design for laboratory water instruments.

"ELGA PURELAB flex 5 is very good for ultrapure water use for different applications like molecular biology or microbiology as well as analytical chemistry. It's very user friendly, and 0 to 7 ltr filled within 10-15 minutes."

MAYANK SHAH
NMIMS

Tech Specs

PRODUCT SPECIFICATIONSPURELAB FLEX 5PURELAB FLEX 6
Inorganics (resistivity at 25°C)18.2 MΩ.cm18.2 MΩ.cm
Organics (TOC)<5ppb *<5ppb *
Bacteria<1 CFU/10ml<1 CFU/10ml
Bacterial endotoxin<0.001 EU/ml<0.001 EU/ml
DNase<20 pg/ml<20 pg/ml
RNase<0.002 ng/ml<0.002 ng/ml
Daily usage (max)<10 litres>10 liters
Delivery flow rateup to 2 l/minup to 2 l/min
PRODUCT SPECIFICATIONSPURELAB FLEX 5PURELAB FLEX 6
Inorganics (resistivity at 25°C)18.2 MΩ.cm18.2 MΩ.cm
Organics (TOC)<5ppb *<5ppb *
Bacteria<1 CFU/10ml<1 CFU/10ml
Bacterial endotoxin<0.001 EU/ml<0.001 EU/ml
DNase<20 pg/ml<20 pg/ml
RNase<0.002 ng/ml<0.002 ng/ml
Daily usage (max)<10 litres>10 liters
Delivery flow rateup to 2 l/minup to 2 l/min

* Dependant on feedwater

Consumables

Composite Vent Filter
Impact of Overuse

Increase in airborne contaminants and potential recontamination of purified water

Composite Vent Filter
Part Number
LC216
Life expectancy
6 months
Impurities Removed
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC145
Life expectancy
3 months
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC134
Life expectancy
6 months
Reverse Osmosis
Impact of Overuse

High levels of organics and inorganics remain in the water reducing the functional life of the DI pack

Reverse Osmosis
Part Number
LC217
Life expectancy
24-36 months
DI Pack
Impact of Overuse

Weakly bound ions are released back into the water reducing resistivity

DI Pack
Part Number
LC214
Life expectancy
6 months
UV Light
Impact of Overuse

Uncontrolled bacterial contamination and TOC levels are not reduced

UV Light
Part Number
LC210
Life expectancy
12-18 months
Impurities Removed
POU Filter
Biofilter - Point of Use Filter
Part Number
LC197
Life expectancy
3 months
Composite Vent Filter
Impact of Overuse

Increase in airborne contaminants and potential recontamination of purified water

Composite Vent Filter
Part Number
LC216
Life expectancy
6 months
Impurities Removed
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC145
Life expectancy
3 months
POU Filter
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Point-of-use Filter
Part Number
LC134
Life expectancy
6 months
Reverse Osmosis
Impact of Overuse

High levels of organics and inorganics remain in the water reducing the functional life of the DI pack

Reverse Osmosis
Part Number
LC217
Life expectancy
24-36 months
DI Pack
Impact of Overuse

Weakly bound ions are released back into the water reducing resistivity

DI Pack
Part Number
LC214
Life expectancy
6 months
UV Light
Impact of Overuse

Uncontrolled bacterial contamination and TOC levels are not reduced

UV Light
Part Number
LC210
Life expectancy
12-18 months
Impurities Removed
POU Filter
Biofilter - Point of Use Filter
Part Number
LC197
Life expectancy
3 months

FAQs

What is a PURELAB flex 5 system?

PURELAB Flex 5 produces ultrapure water (Type I) directly from tap water. It also has a unique internal chamber which guarantees continuous Type 1 ultrapure water which is pressure free and this connects directly to multiple analytical chemistry systems from multiple brands

What type of applications are suitable for water dispensed from PURELAB Flex 5 system?

Besides applications such electrochemistry, atomic spectroscopy, ic (Ion Chromatography), liquid chromatography, immunochemistry, hplc, molecular biology, plant tissue culture, electrophoresis & mammalian cell culture; PURELAB Flex 5 can also be connected to multiple analytical chemistry systems.

What are the benefits of the PURELAB Flex 5 system?

In addition to offering customers a range of benefits such as being intuitive and easy to use , easy to install and commission, flexible dispensing which allows customers to dispense water into a range of container sizes and shapes. It uses minimal lap space, is easy to operate and maintain and can be used for a wide range of lab applications. Other benefits includes real-time TOC monitoring which is calculated every 2-3 seconds to give a real time TOC reading for maximum assurance; water quality monitoring up to the point of dispense to help ensure valuable parameters are provided at all times and inbuilt periodic recirculation to help minimise biofilm build up which can affect some applications. PURELAB Flex 5 provides on-demand, continuous ultrapure water to analysers, reduces environmental impact and inventory management, prevents contamination to analysers, ensures consistency of water feed and quality and can connect to multiple analysers.

What is the size of the storage reservoir in a PURELAB Flex 5?

PURELAB Flex 5 is designed with an integrated 7 litre reservoir.

What is the difference between a PURELAB Flex 5 and 6?

Whilst PURELAB Flex 5 is fed directly from a tap water source, PURELAB Flex 6 is fed by pre-purified water.
