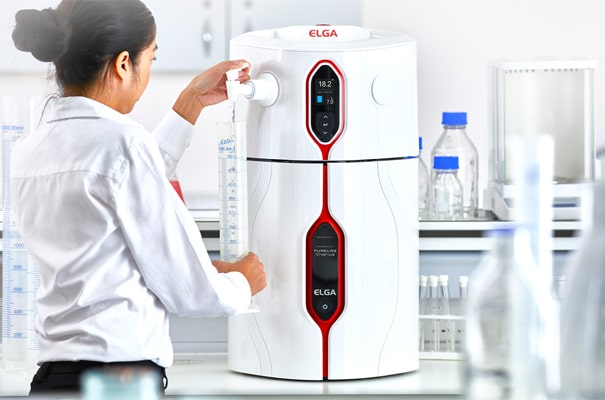

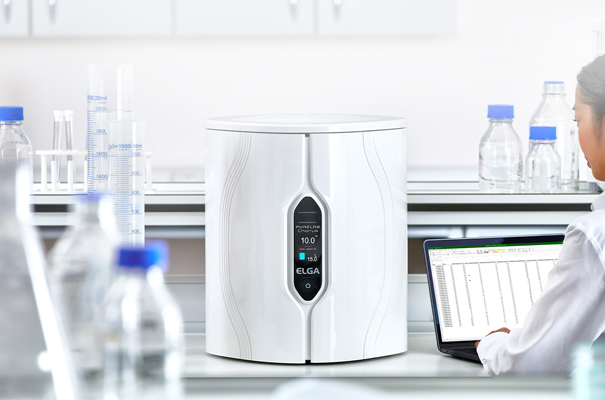

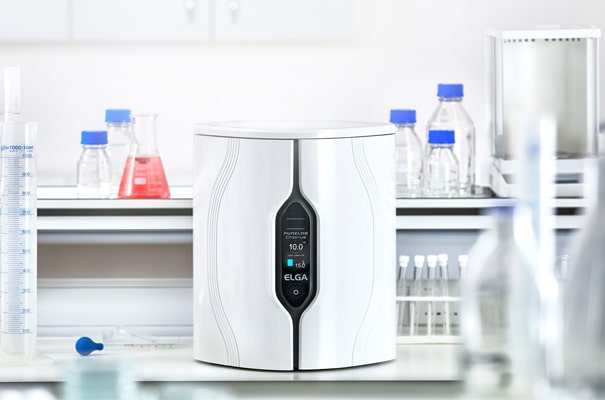

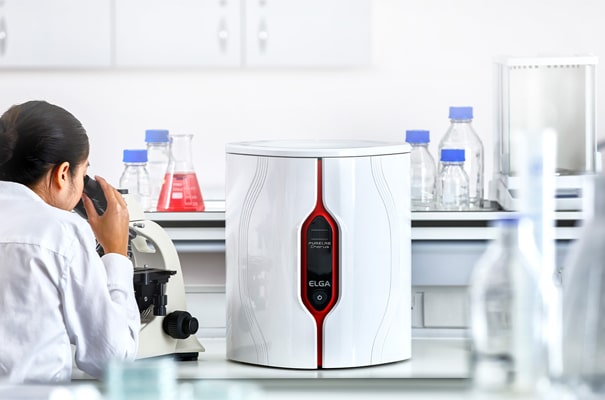

PURELAB® Chorus 2+

Features

Flexible. Configurable. Simple.

One complete solution for the laboratory

The PURELAB Chorus 2+ provides additional bacteria and inorganic quality for sensitive analytical and life science applications above that of basic laboratory work. With its simple design and ease of use, water can be dispensed from the system or from a choice of additional Halo Dispensers.

Tech Specs
Product Specifications PURELAB Chorus 2+ (RO/EDI/UV) 10 l/hr PURELAB Chorus 2+ (RO/EDI/UV) 20 l/hr PURELAB Chorus 2+ (RO/DI/UV) 10 l/hr PURELAB Chorus 2+ (RO/DI/UV) 20 l/hr
Inorganics (resistivity at 25°C) 1 to >15 MΩ.cm 1 to >15 MΩ.cm 1 to >15 MΩ.cm 1 to >15 MΩ.cm
Organics (TOC) <30 ppb <30 ppb <30 ppb <30 ppb
Bacteria <0.1 CFU/ml <0.1 CFU/ml <0.1 CFU/ml <0.1 CFU/ml
pH Effectively neutral Effectively neutral Effectively neutral Effectively neutral
Particles >99% rejection >99% rejection >99% rejection >99% rejection
Daily usage (max) 220 l/day 440 l/day 240 l/day 480 l/day
Daily usage (min) 1 l/day 10 l/day 10 l/day 10 l/day
Delivery flow rate 10 l/hr 20 l/hr 10 l/hr 20 l/hr
Consumables
Composite Vent Filter
Composite Vent Filter
Part Number
LC216
Life expectancy
12 months
Impurities Removed
Impact of Overuse

Increase in airborne contaminants and potential recontamination of purified water

EDI Stack
EDI stack - LC277
Part Number
LC277
Life expectancy
4-5 years
Impact of Overuse

Ions will remain in the water

POU filter
Point-of-use Filter
Part Number
LC145
Life expectancy
3 months
Impact of Overuse

Potential recontamination of purified water and reduced flow rates

Pre-treatment pack render image
Pre-treatment Pack
Part Number
LC241
Life expectancy
6 months
Impact of Overuse

Chlorine, chloarmine and organics remain, increasing the burden on downstream consumables which will need more frequent and expensive changes

Reverse Osmosis
Reverse Osmosis
Part Number
LC240
Life expectancy
24-36 months
Impact of Overuse

High levels of organics and inorganics remain in the water reducing the functional life of the DI pack

Product Accessories
15 liter reservoir
PURELAB® Reservoir 15 l

Capacity: 15 liters

Dimensions: 470 (h) x 376 (w) x 340 (d)

Flow Rate: 6 l/min

30 liter reservoir
PURELAB® Reservoir 30 l

Capacity: 30 liters

Dimensions: 660 (h) x 376 (w) x 340 (d)

Flow Rate: 8 l/min

60 liter reservoir
PURELAB® Reservoir 60l

Capacity: 60 liters

Dimensions: 570 (h) x 532 (w) x 522 (d)

Flow Rate: 10 l/min

100 liter reservoir
PURELAB® Reservoir 100l

Capacity: 100 liters

Dimensions: 806 (h) x 532 (w) x 522 (d)

Flow Rate: 10 l/min

PURELAB Chorus Halo Dispenser
PURELAB Chorus Halo Dispenser

Modular nature of PURELAB Chorus means that your dispense solutions can sit independently from the unit. You can even have them installed in adjacent labs.

 Fixed handset
 Variable flow rate dispense
 Drop-by-drop control
 Locked dispense

PURELAB Chorus Halo Advanced Dispenser
PURELAB Chorus Halo Advanced Dispense

Modular nature of PURELAB Chorus means that your dispense solutions can sit independently from the unit. You can even have them installed in adjacent labs.

 Fixed handset
 Variable flow rate dispense
 Drop-by-drop control
 Locked dispense
 Purity monitoring to point-of-use
 Auto volume dispense

PURELAB Chorus Halo Flexible Dispenser
PURELAB Chorus Halo Flexible Dispense

Modular nature of PURELAB Chorus means that your dispense solutions can sit independently from the unit. You can even have them installed in adjacent labs.

 Flexible handset
 Variable flow rate dispense
 Drop-by-drop control
 Locked dispense
 Purity monitoring to point-of-use
 Auto volume dispense
